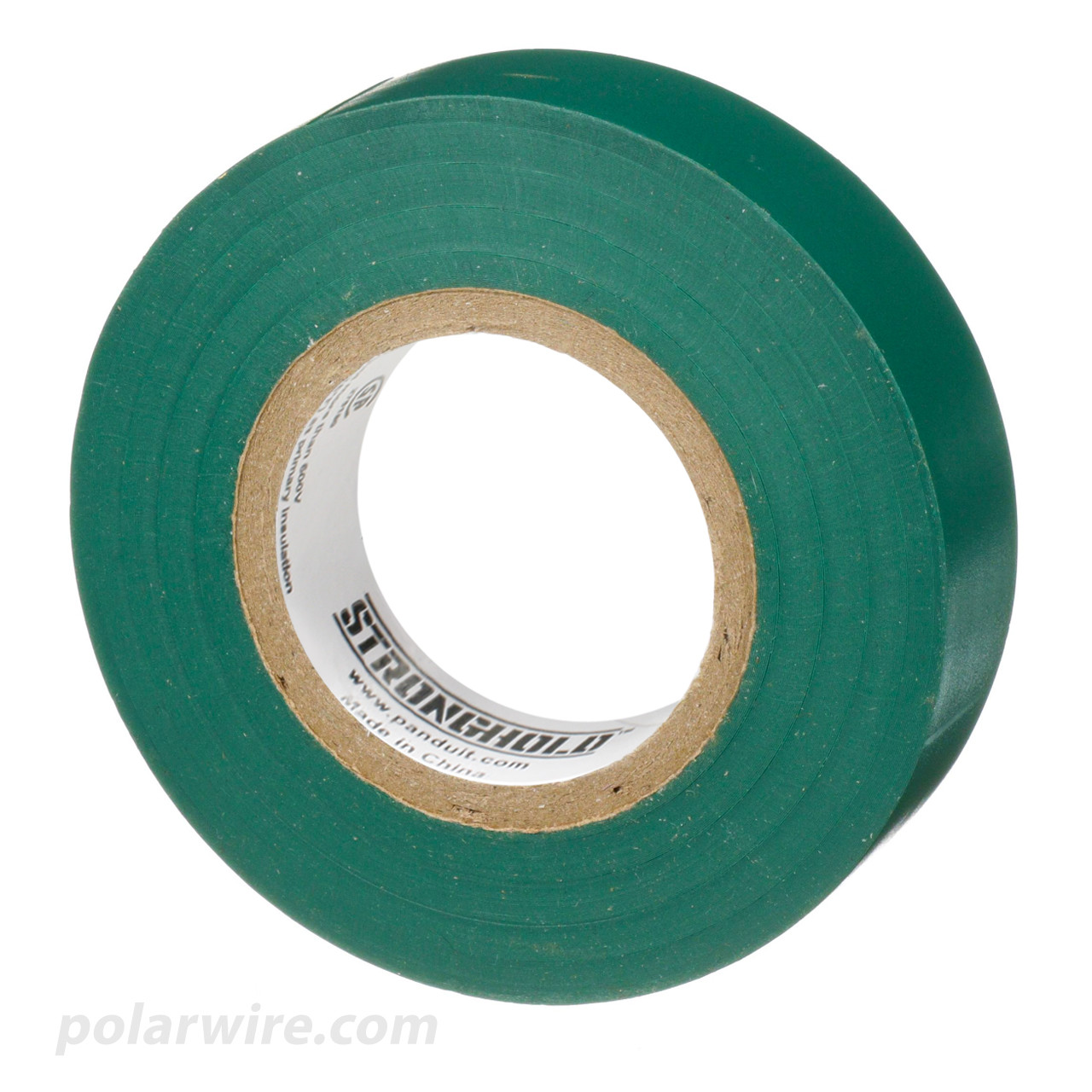

3/4" x 66' Green General Purpose Electrical Insulating Tape
Loading...
Loading...
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Loading...
Description
Green StrongHold General Purpose PVC Electrical Tape
3/4" x 66' Length
Panduit part number: ST17-075-66GR
StrongHold General Purpose Electrical Tape is non-corrosive, pressure sensitive, and high-elongation for excellent conformability. Suitable as primary insulation when splicing up to 600 Volts.
- Green 7.0 mil Rubber Adhesive Pressure Sensitive Vinyl Tape
- Flame Retardant
- Cold Resistant
- Dielectrical Strength 7000 Volts
- Non-corrosive adhesive
- UL Listed — meets UL 510
- CSA Certified — CSA C 22.2 No. 197
- Lead-free
- RoHS Compliant
- California Prop. 65 Compliant
- -10°C to 80°C
-10°C to 80°C
Specifications:
ST17 PVC Electrical Tape
Material
Polyvinyl Chloride (PVC)
Color
Green
Overall Thickness (In.)
0.007
Overall Thickness (mm)
0.18
Overall Width (In.)
0.75
Overall Width (mm)
19.05
Overall Length (ft.)
66
Overall Length (m)
20.12
Tensile Strength (N/cm)
24.72
Tensile Strength (kg/mm)
0.252
Elongation at Break (%)
200
Adhesion to Steel (N/cm)
1.97
Adhesion to Steel (oz/in)
18
Adhesion to Backing (N/cm)
1.97
Adhesion to Backing (oz/in)
18
Flammability Rating
UL 510 Flame Retardant
Maximum Operating Temperature (°C)
80
Maximum Operating Temperature (°F)
176
Minimum Operating Temperature (°C)
-10
Minimum Operating Temperature (°F)
14
Dielectric Breakdown Voltage (V)
7
Standards Met
Meets UL 510 CSA C 22.2 No 197;
Meets RoHS 2002/95/EC directives
Meets RoHS 2002/95/EC directives
Compliance Certifications
UL Listed/CSA Certified
Environment
Indoor/Outdoor
Application
Contractor, Electrical Construction, Industrial Construction, Manufacturing, Maintenance and Repair
Durability (yr)
5
Tape Style
General Purpose
Adhesive Backing Material
Rubber
