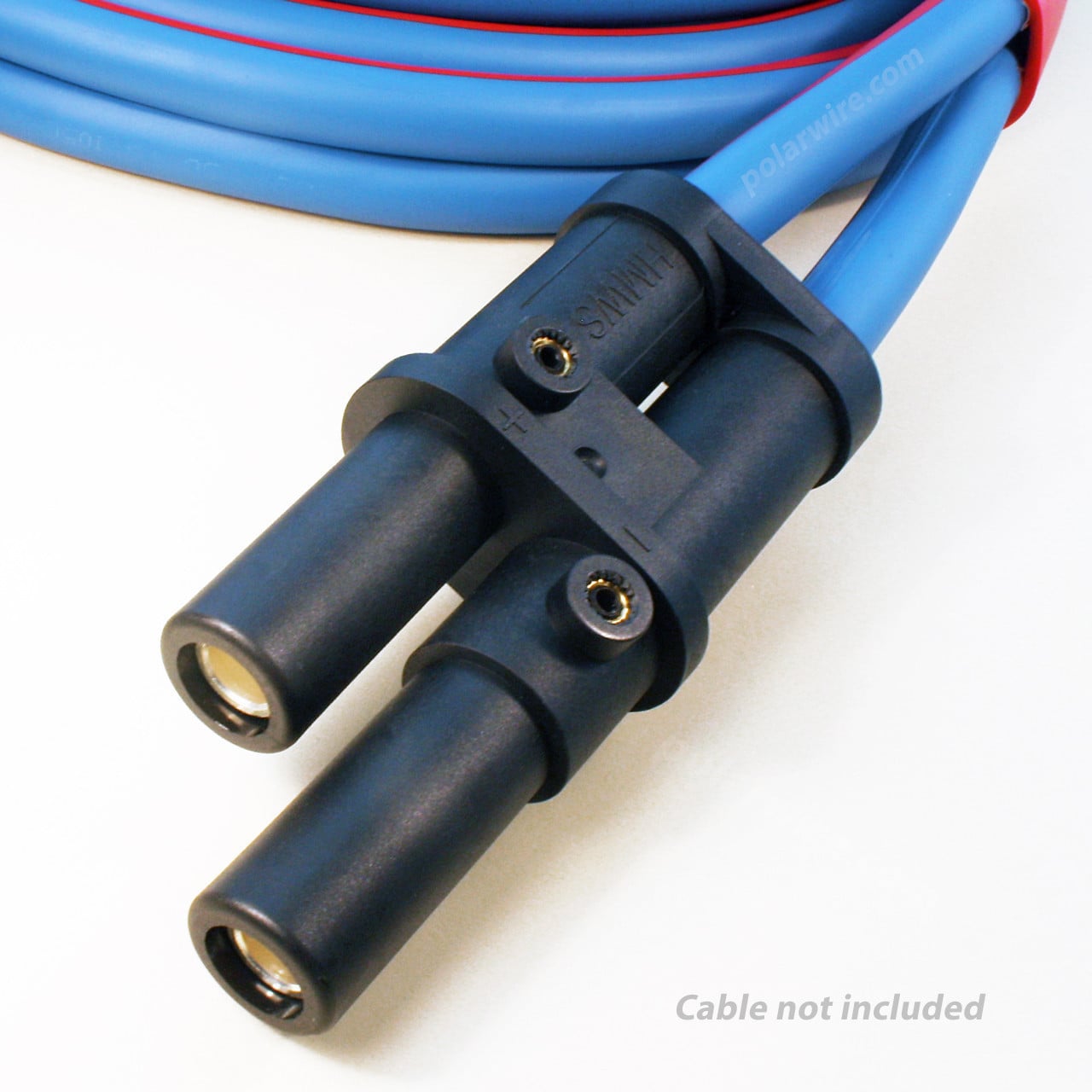

4 ga SAE J1283 Jump Start Plug Connector

One of the HIGHEST AMPACITY RATED connectors ON THE PLANET!
500 Amp Continuous, 2000 Amp Intermittent 30 Seconds

Heavy duty, high capacity SAE J1283 Jump Start Connectors provide secure electrical connections for charging or starting heavy equipment and industrial machines. The specially designed plug shape eliminates the chance of cross polarity connections.

Fully compatible with the J1283 connectors used by leading heavy equipment manufacturers including Caterpillar, Komatsu, and CASE

Jump Start Mechanical Connectors

• High ampacity SAE J1283 Jump Start Plugs are rated 500 amps continuous, 2000 amps intermittent 30 seconds
• Plug connector mates with SAE J1283 Terminal
• Designed for use with 4 AWG wire
• Ideal for use where battery access is restricted or dangerous
• Mechanically applied and field serviceable
• Keyed to ensure correct polarity
• Design reduces chance of sparking and possible ignition of flammable materials
• Zinc coated copper terminals
• High impact ABS plastic housing
• Meets or exceeds SAE J1283 performance standards
• Easy inventory—just a few parts work for every Jump Start application

Use J1283 Jump Start Plugs with Arctic Superflex Blue® Double Conductor Wire for superior conductivity and outstanding flexibility, even in extreme cold.
