Arctic Ultraflex Blue®
Single Conductor Wire

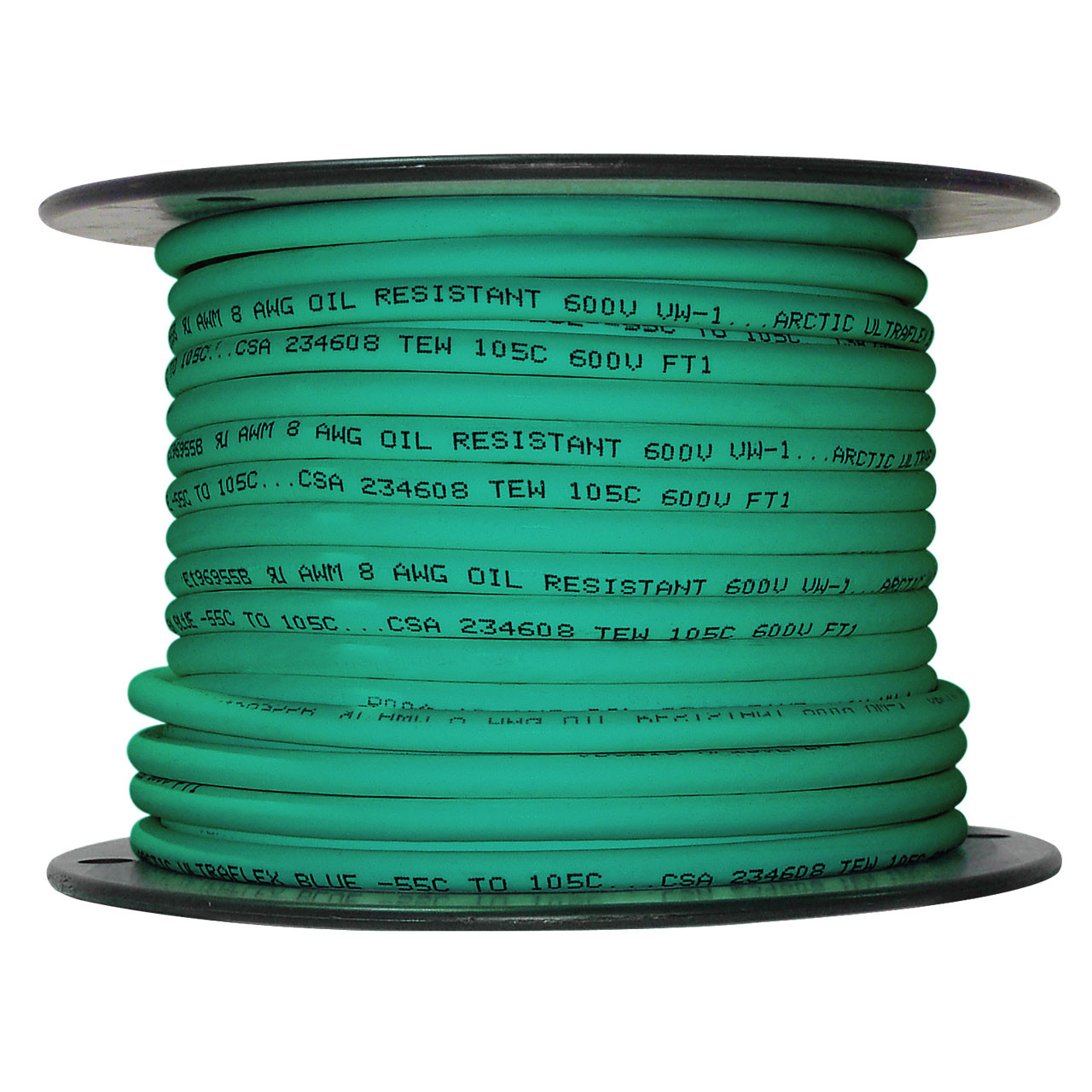

8 AWG Green

Legend:
E196955 8 AWM AWG OIL RESISTANT 600V VW-1 ARCTIC ULTRAFLEX BLUE® -55°C TO 105°C CSA 234608 TEW 105°C 600V FT1

Rated for and proven in extreme temperatures of -55°C to 105°C

This highly flexible wire combines finely stranded copper with a jacket that resists the abuses of oil, gasoline, sunlight, saltwater, acids, and chemicals. Arctic Ultraflex Blue® has high abrasion resistance and can be used in most 600V applications. UL Listed as AWM (Appliance Wiring Material). Numerous applications including those approved under NEC article 400 and associated articles.

Features:

• Rated for 600 Volts
• Superior flexibility to -55°C (-67°F)
• Passes UL Standard cold bend test
• Class K fine stranded copper construction
• Resists oil, grease, chemicals, abrasion
• Sunlight and weather resistant
• Flame retardant (VW-1)
• UL Recognized and CSA Approved
• Environmentally safe
• Made in the USA

Applications:

• UL 508A Industrial control panels
• Internal appliance and equipment wiring
• Inverter cables and wiring
• Industrial machines and robotics
• Construction equipment
• Marine, RV and automotive wiring
• Medium and heavy-duty trucks and trailers
• Load banks, motor leads, welding cable
• Forklifts and golf carts
• Batteries and chargers
• Power hookup cable

Manufactured exclusively by Polar Wire Products

-55°C to 105°C

Construction Specifications:

• 8 AWG
• Class K Copper Stranding (168/30)
• .150" Conductor Outside Diameter
• .045" Insulation Thickness
• .240" Finished Outside Diameter
• Ampacity at 30°C (86°F)*: 85
• Ampacity at 40°C (104°F)*: 81

*Ampacities of 600V and 1000V 105°C AWM wires in air. Ampacities based on single conductor in free air, 30°C or 40°C ambient temperature as specified, 105°C conductor temperature, per NEC table 310-17 (adjusted for 105°C). Free air ratings assume a one-cable-diameter space between adjacent conductors.
