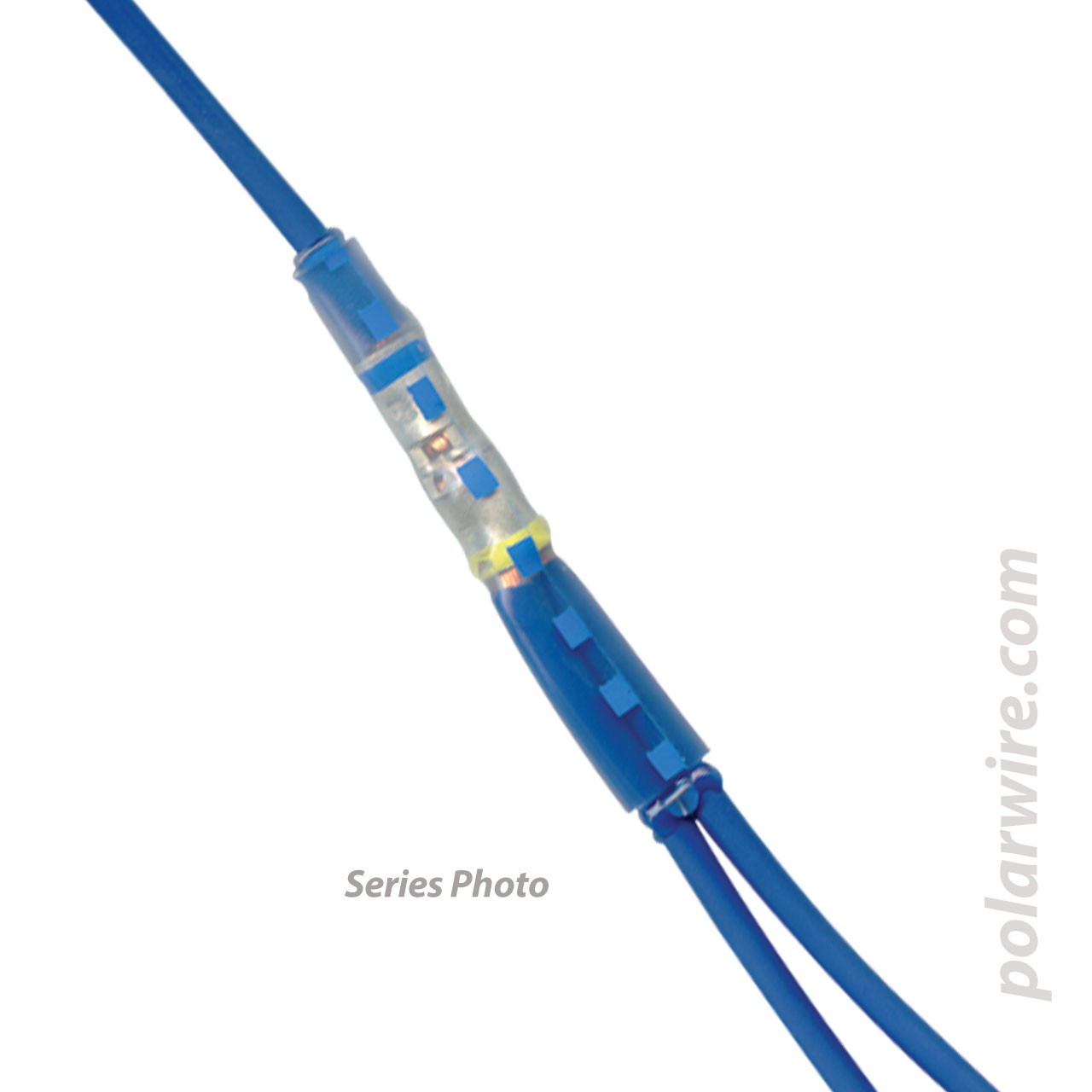

HydraLink Heat Seal Inline Butt Connector
24-22 AWG
10 Pack

HydraLink Heat Shrink Connectors have an active adhesive that seals and secures multiple wires, eliminating pull out. Hydralink In-Line Butt Connectors splice multiple wires, shrinking and sealing for superior durability and protection. Color dashes indicate wire gauge.

The smaller end of the HS-2X22 connector (white stripe) accepts one 24-22 AWG wire. Crimp with insulated crimp die red (24-22 AWG).

The larger end (blue stripe) accepts two 24-22 AWG wires. Use insulated crimp die red (20-18 AWG).
