Item Number
ST14
Loading...
Loading...
Loading...
Loading...
3/4" x 60' Black General Purpose PVC Electrical Tape
Loading...
Loading...
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Loading...
Description

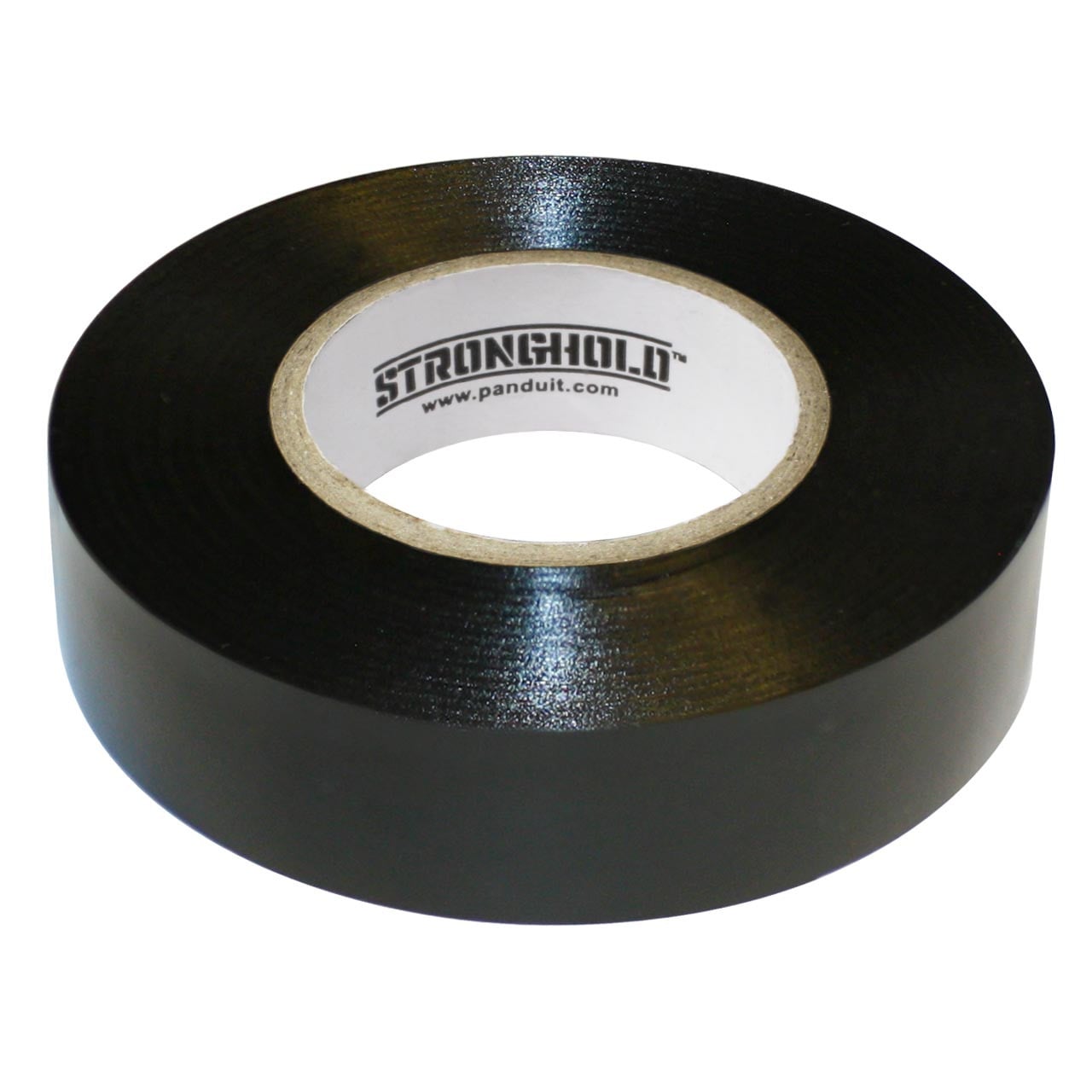

StrongHold Black General Purpose PVC Electrical Tape
3/4" x 60' Length
Panduit part number: ST14-075-60BK
StrongHold General Purpose Electrical Tape is non-corrosive, pressure sensitive, and high-elongation for excellent conformability. Suitable as primary insulation when splicing up to 600 Volts.
- Black 7.0 mil Rubber Adhesive Pressure Sensitive Vinyl Tape
- Flame Retardant
- Cold Resistant
- Dielectrical Strength 7000 Volts
- Non-corrosive adhesive
- UL Listed — meets UL 510
- CSA Certified — CSA C 22.2 No. 197
- Lead-free
- RoHS Compliant
- California Prop. 65 Compliant
- -10°C to 80°C
-10°C to 80°C
Specifications:
ST14 PVC Electrical Tape
Material
Polyvinyl Chloride (PVC)
Color
Black
Overall Thickness (In.)
0.007
Overall Thickness (mm)
0.18
Overall Width (In.)
0.75
Overall Width (mm)
19.05
Overall Length (ft.)
60
Overall Length (m)
18.29
Tensile Strength (N/cm)
23.54
Tensile Strength (kg/mm)
0.24
Elongation at Break (%)
200
Adhesion to Steel (N/cm)
1.75
Adhesion to Steel (oz/in)
16
Adhesion to Backing (N/cm)
1.75
Adhesion to Backing (oz/in)
16
Flammability Rating
UL 510 Flame Retardant
Flagging (mm)
0
Maximum Operating Temperature (°C)
80
Maximum Operating Temperature (°F)
176
Minimum Operating Temperature (°C)
-10
Minimum Operating Temperature (°F)
14
Dielectric Breakdown Voltage (V)
7
Standards Met
Meets UL 510 CAS C 22.2 No 197;
Meets RoHS 2002/95/EC directives
Meets RoHS 2002/95/EC directives
Compliance Certifications
UL Listed/CSA Certified
Environment
Indoor/Outdoor
Application
Contractor, Electrical Construction, Industrial Construction, Manufacturing, Maintenance and Repair
Durability (yr)
5
Tape Style
General Purpose
Adhesive Backing Material
Rubber
